Steel Glass Doors

Door Type

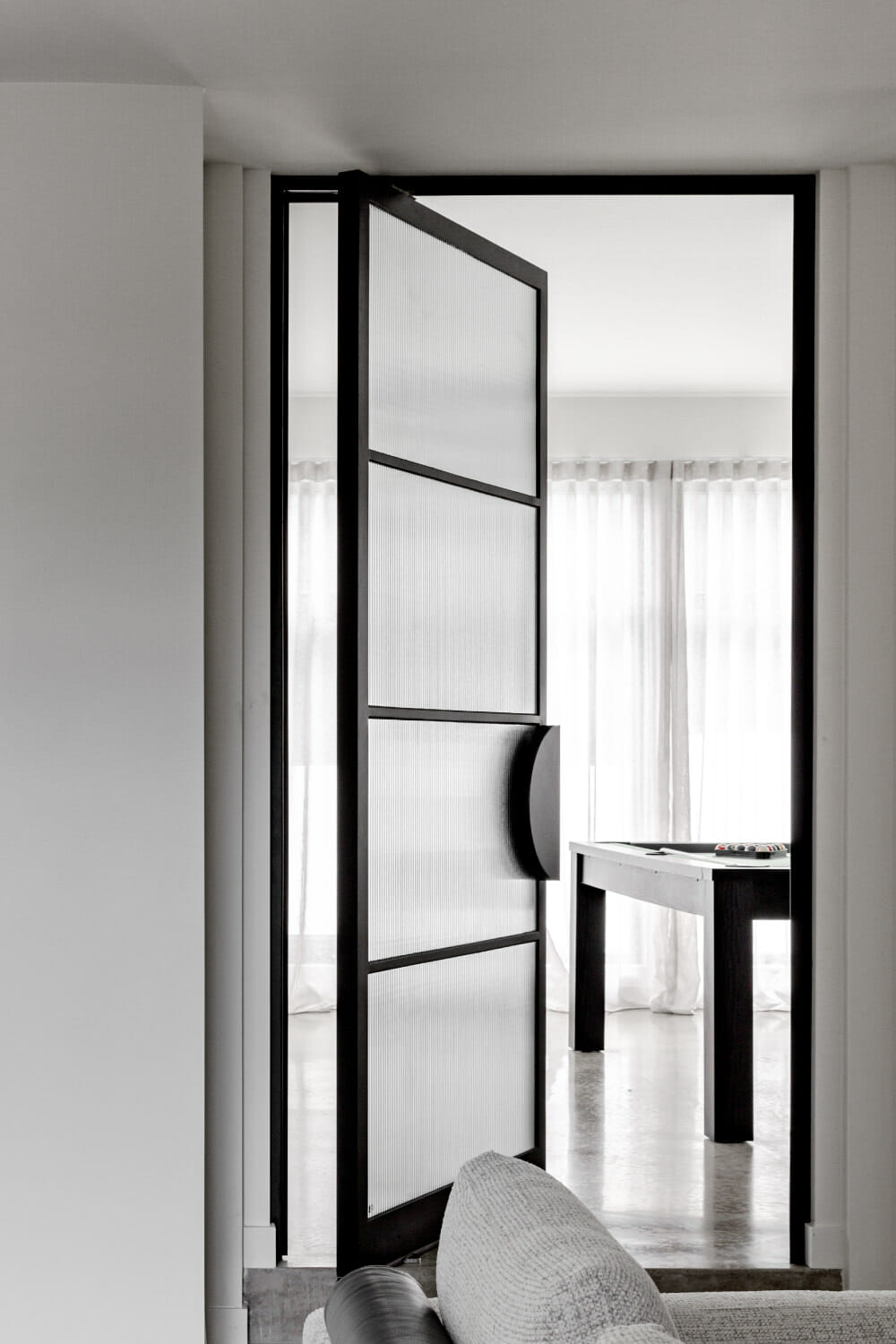

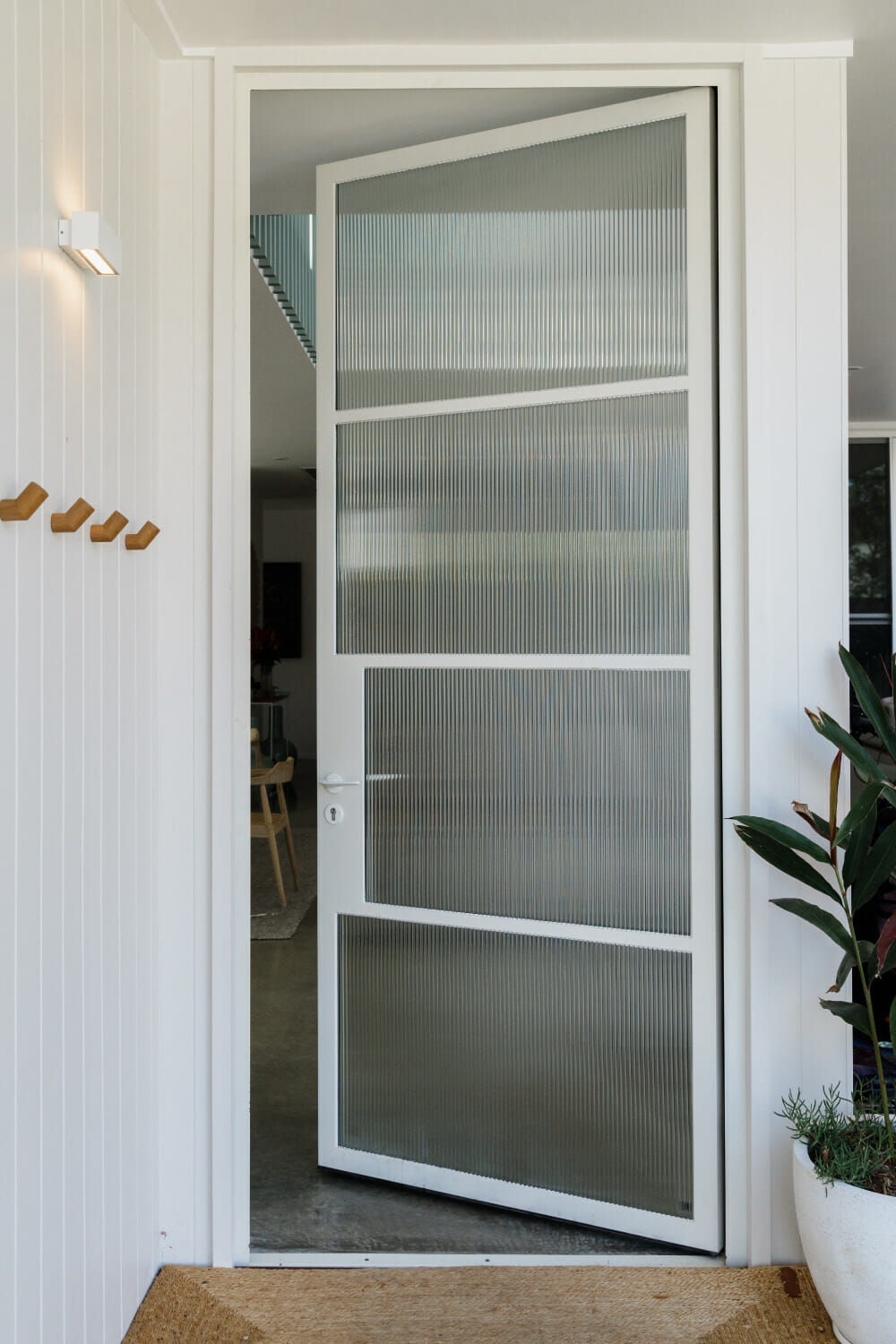

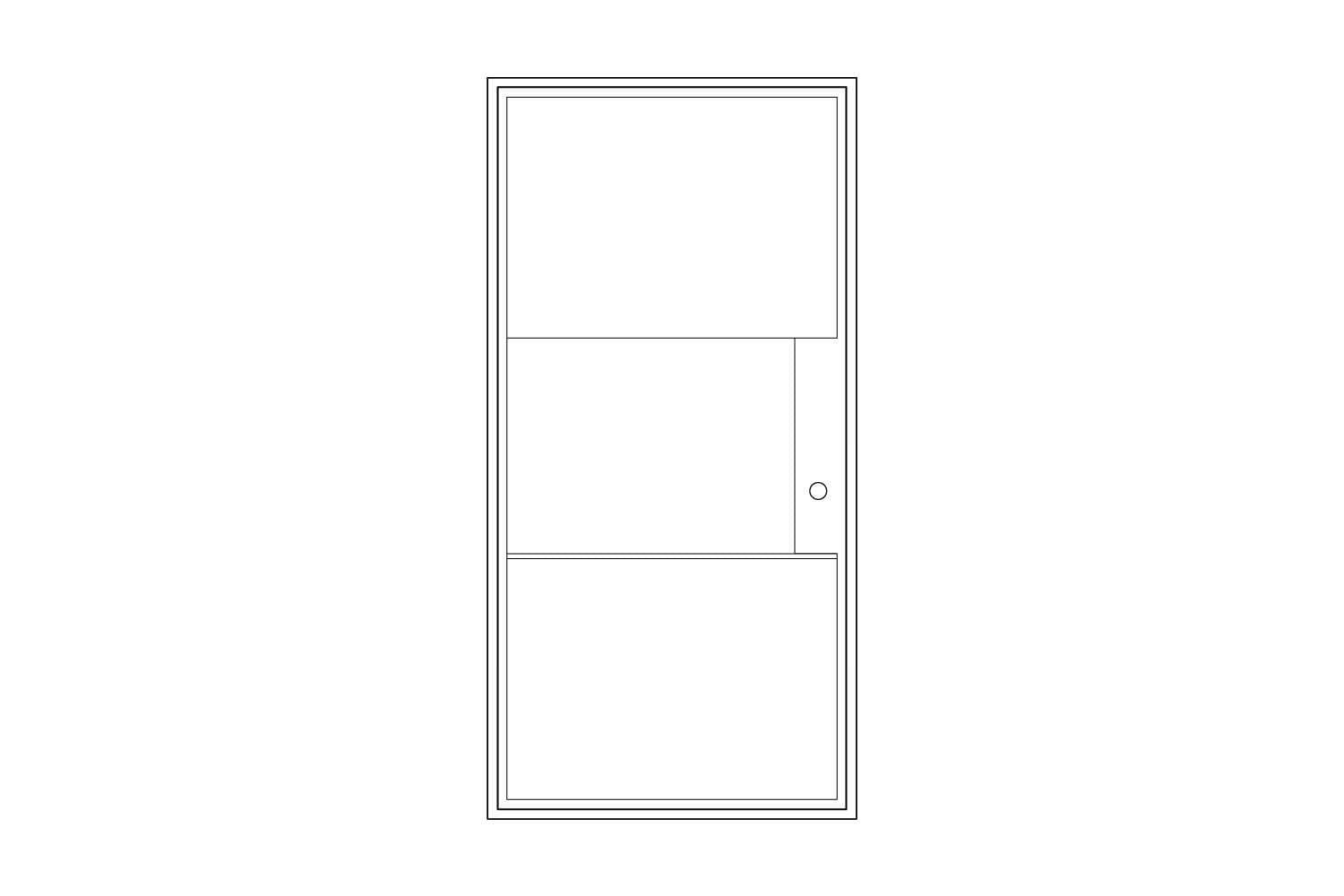

Pivot

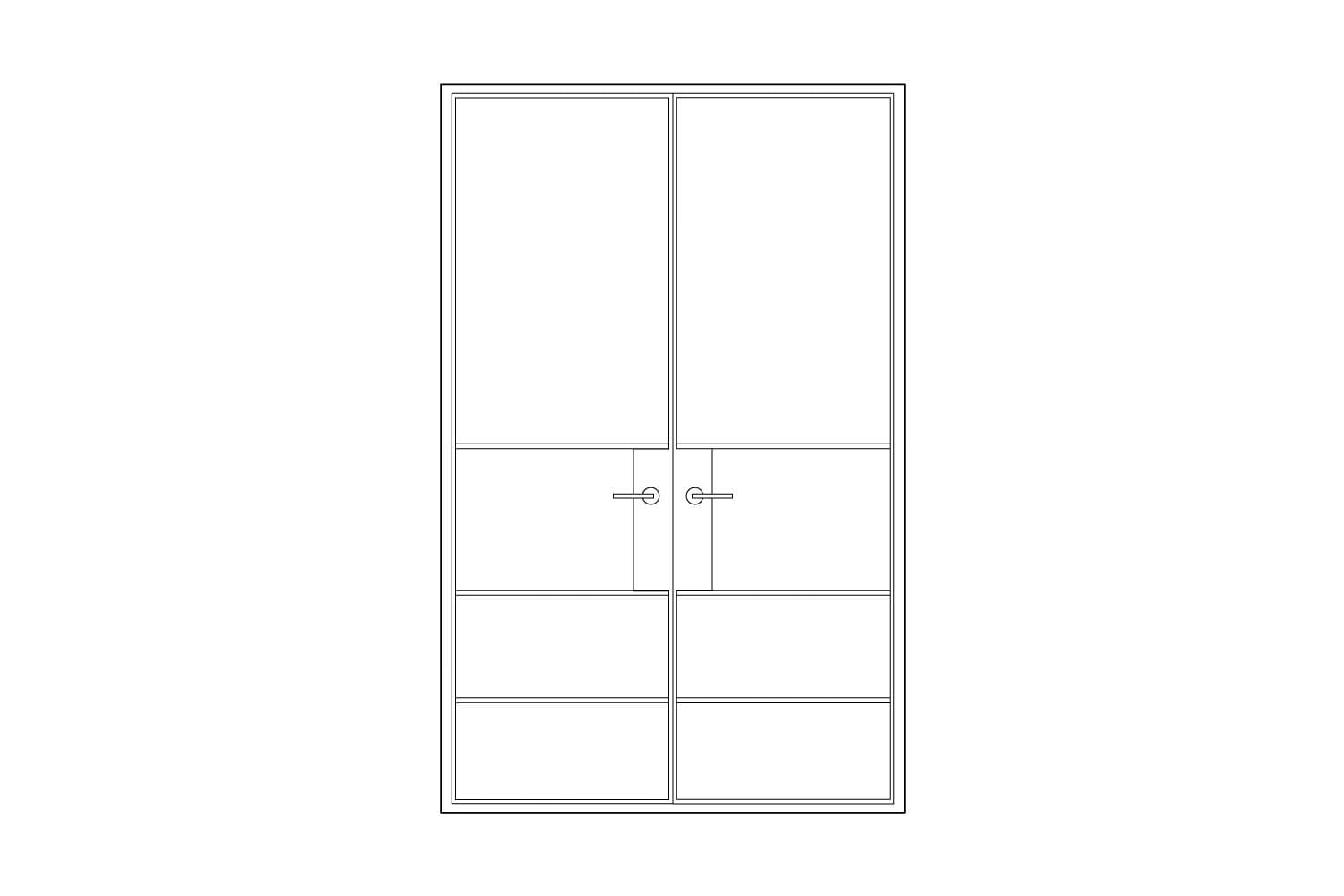

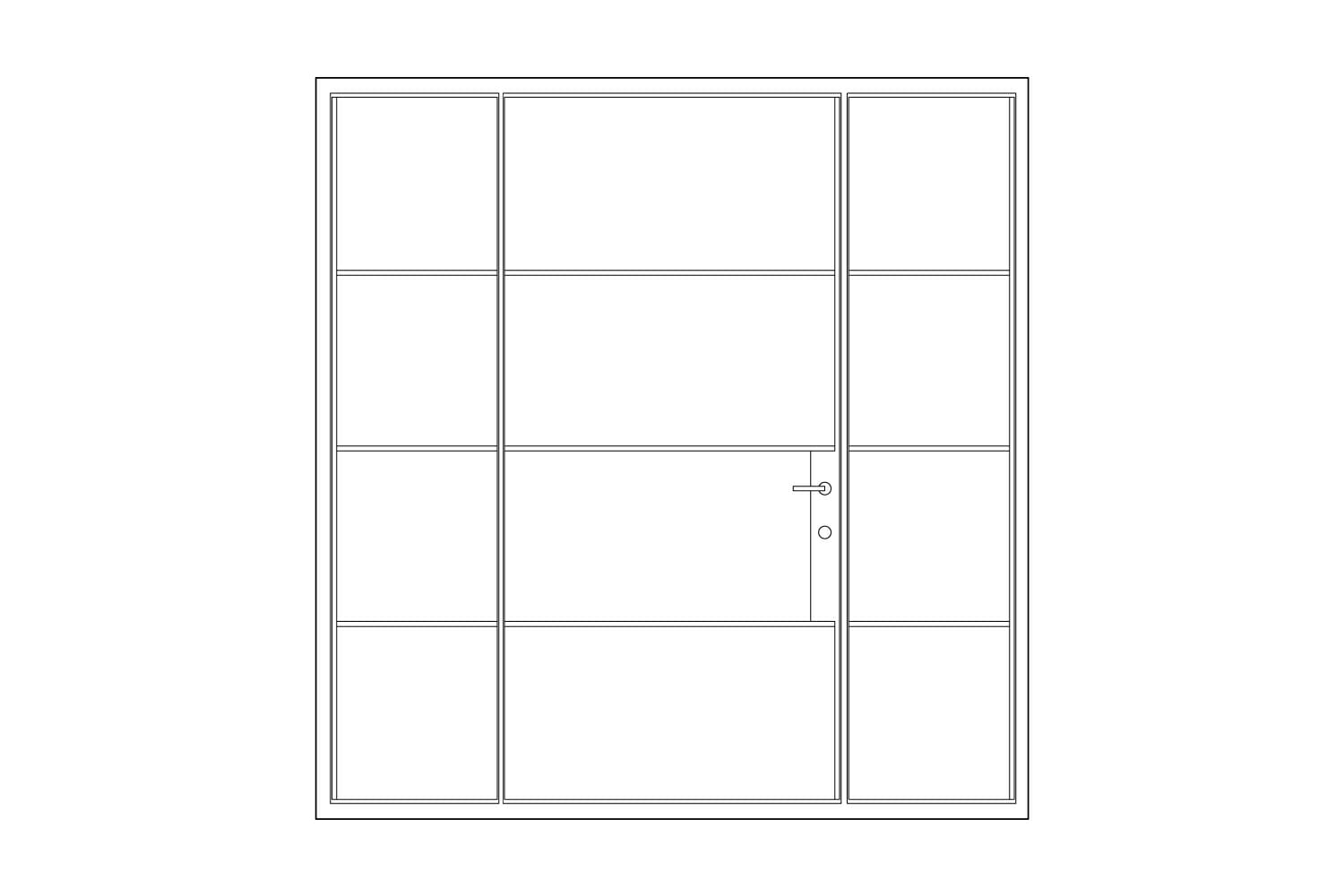

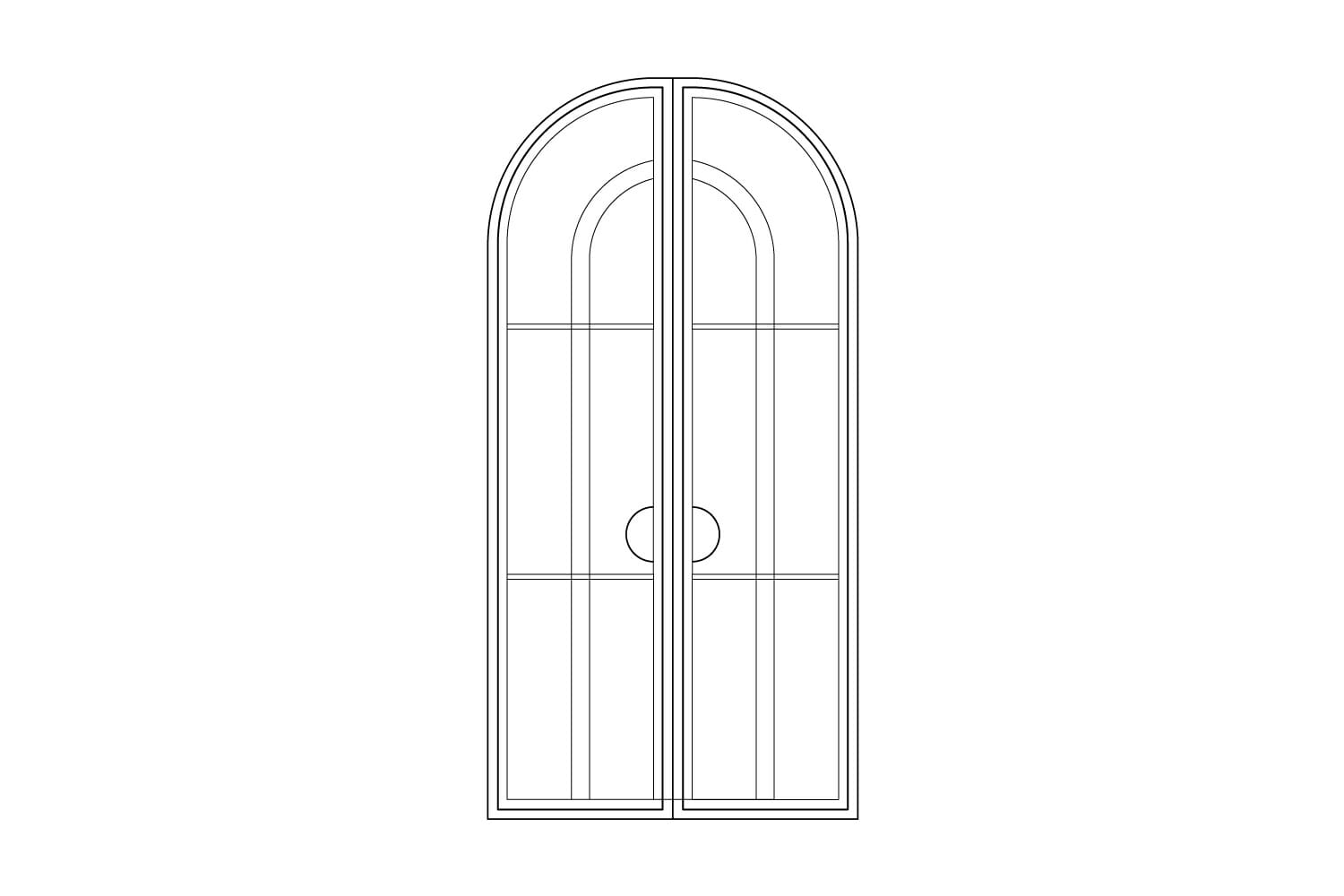

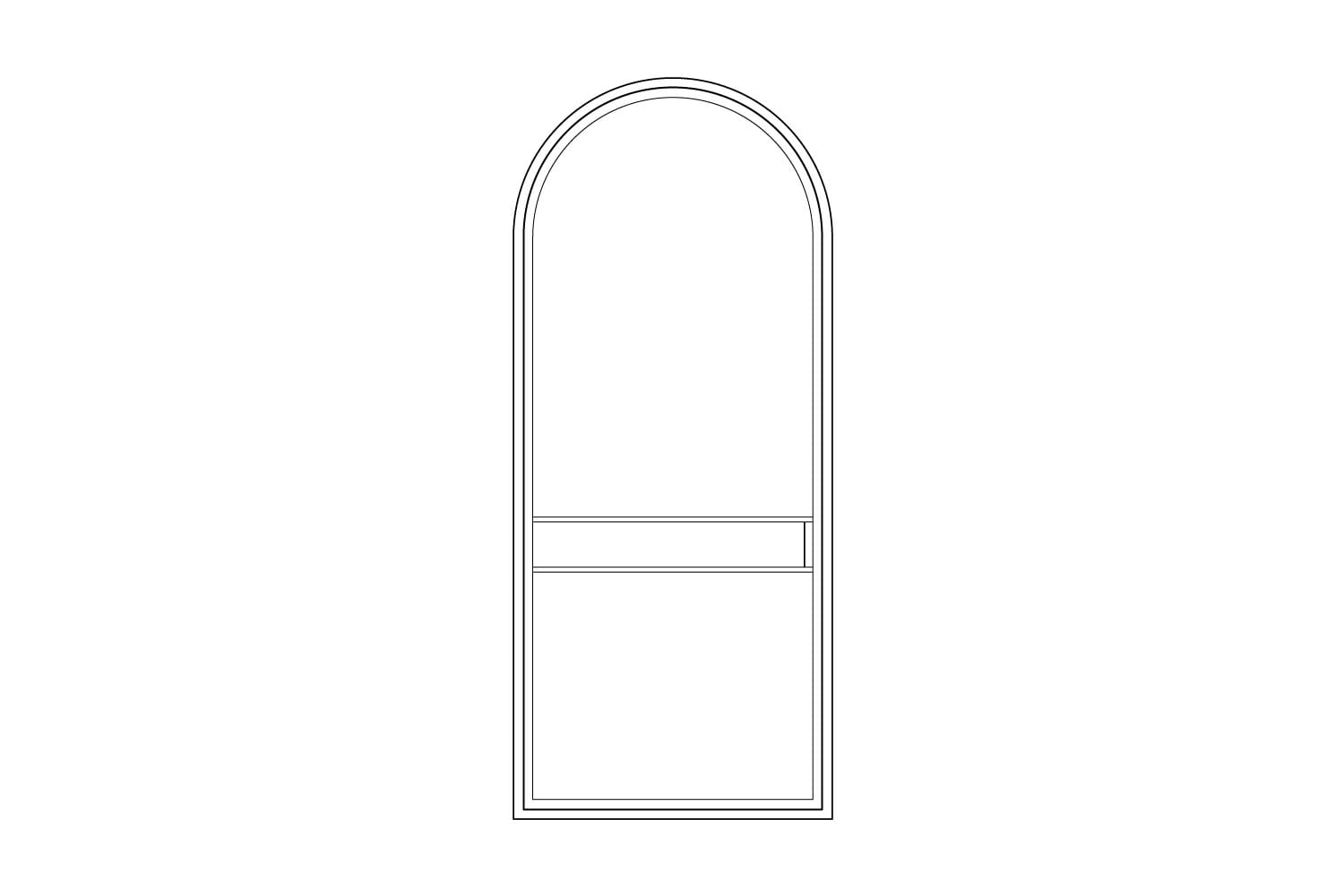

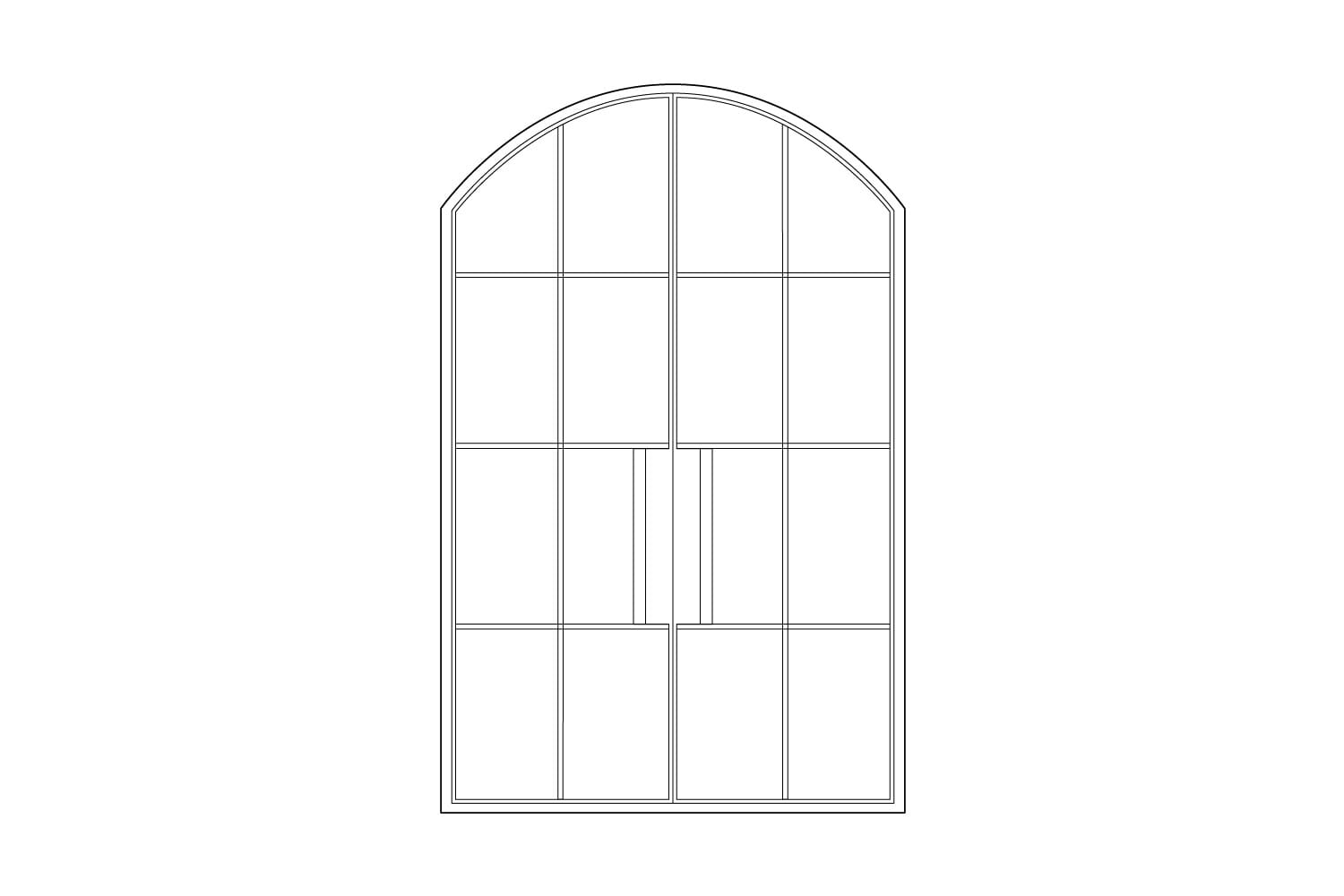

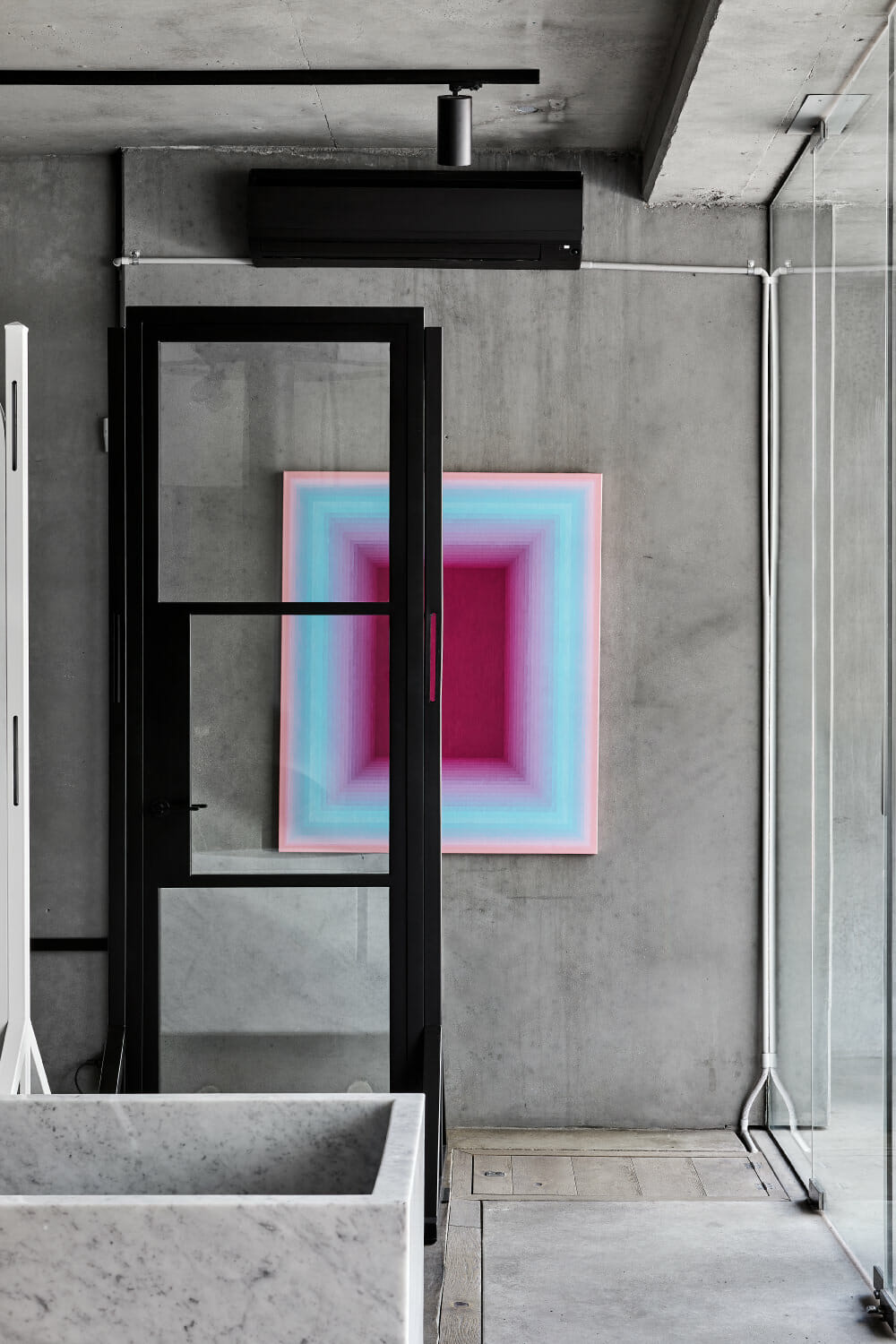

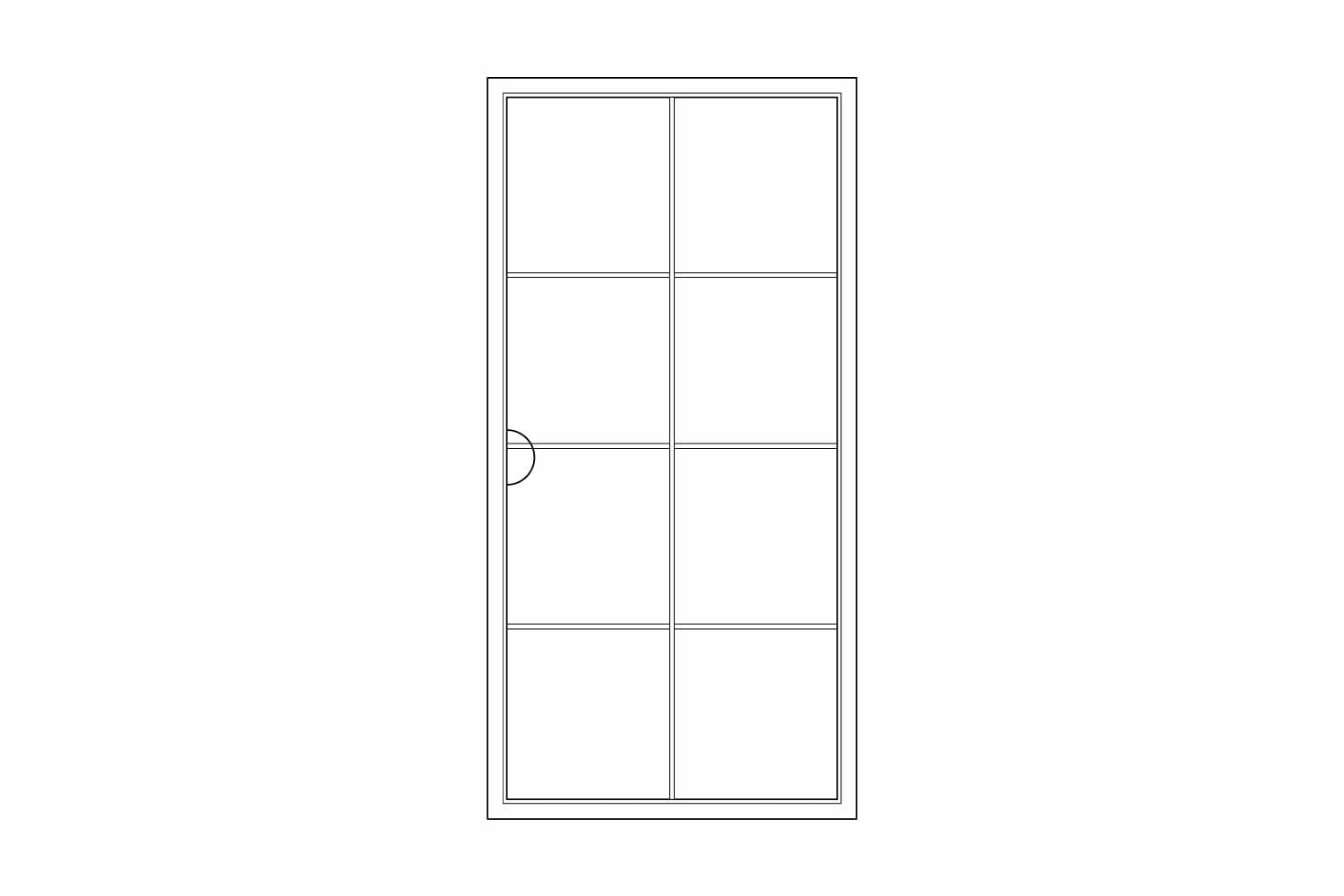

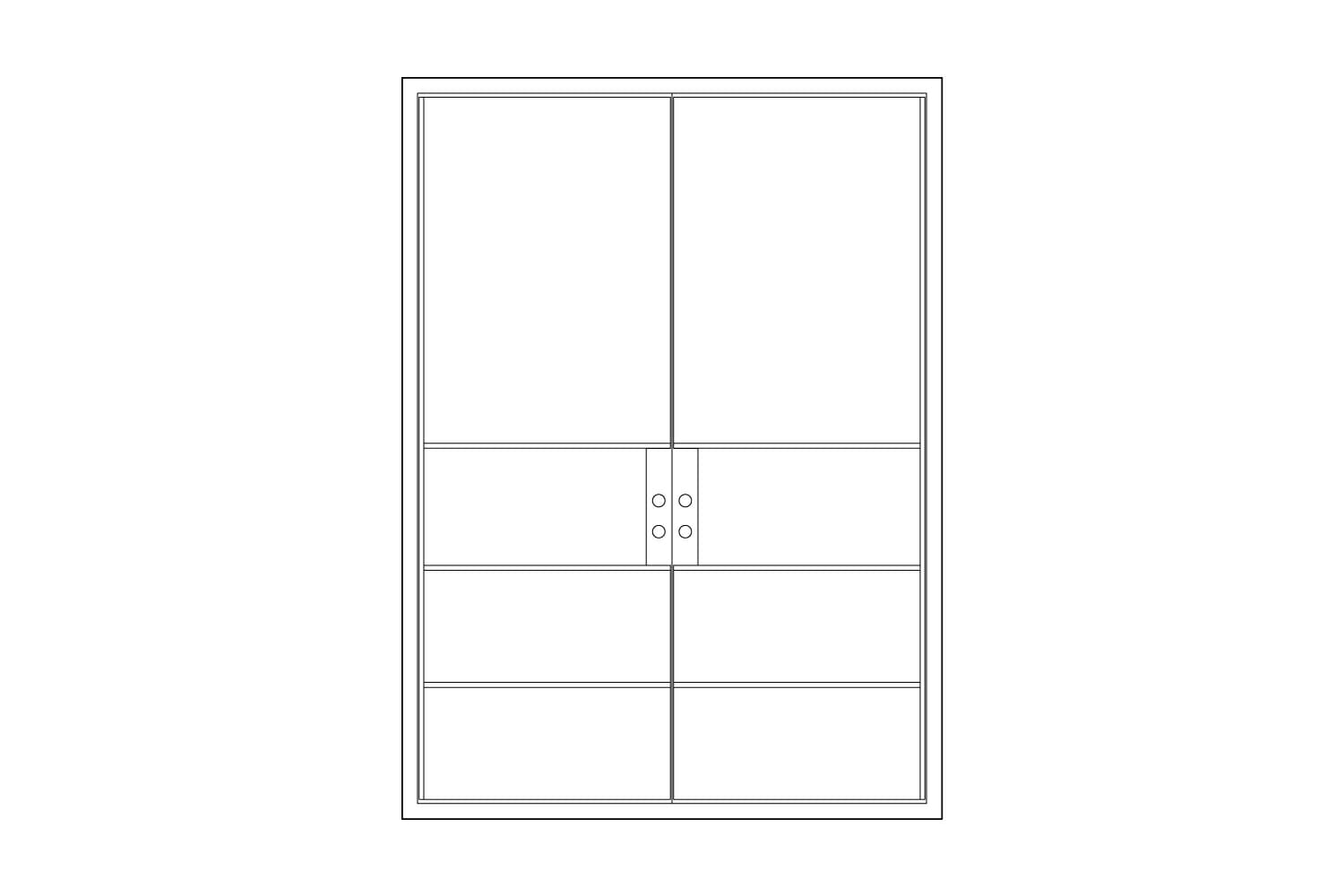

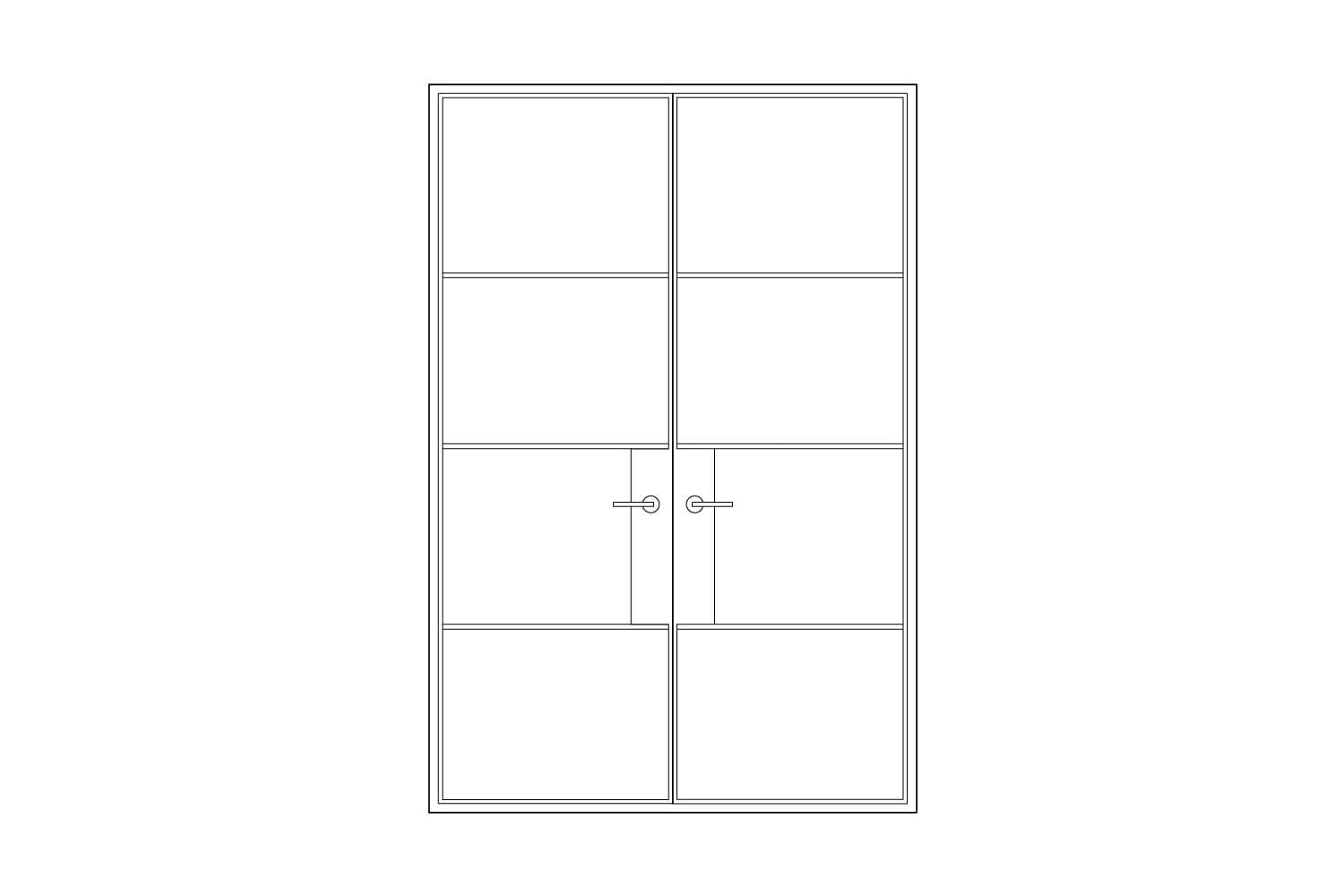

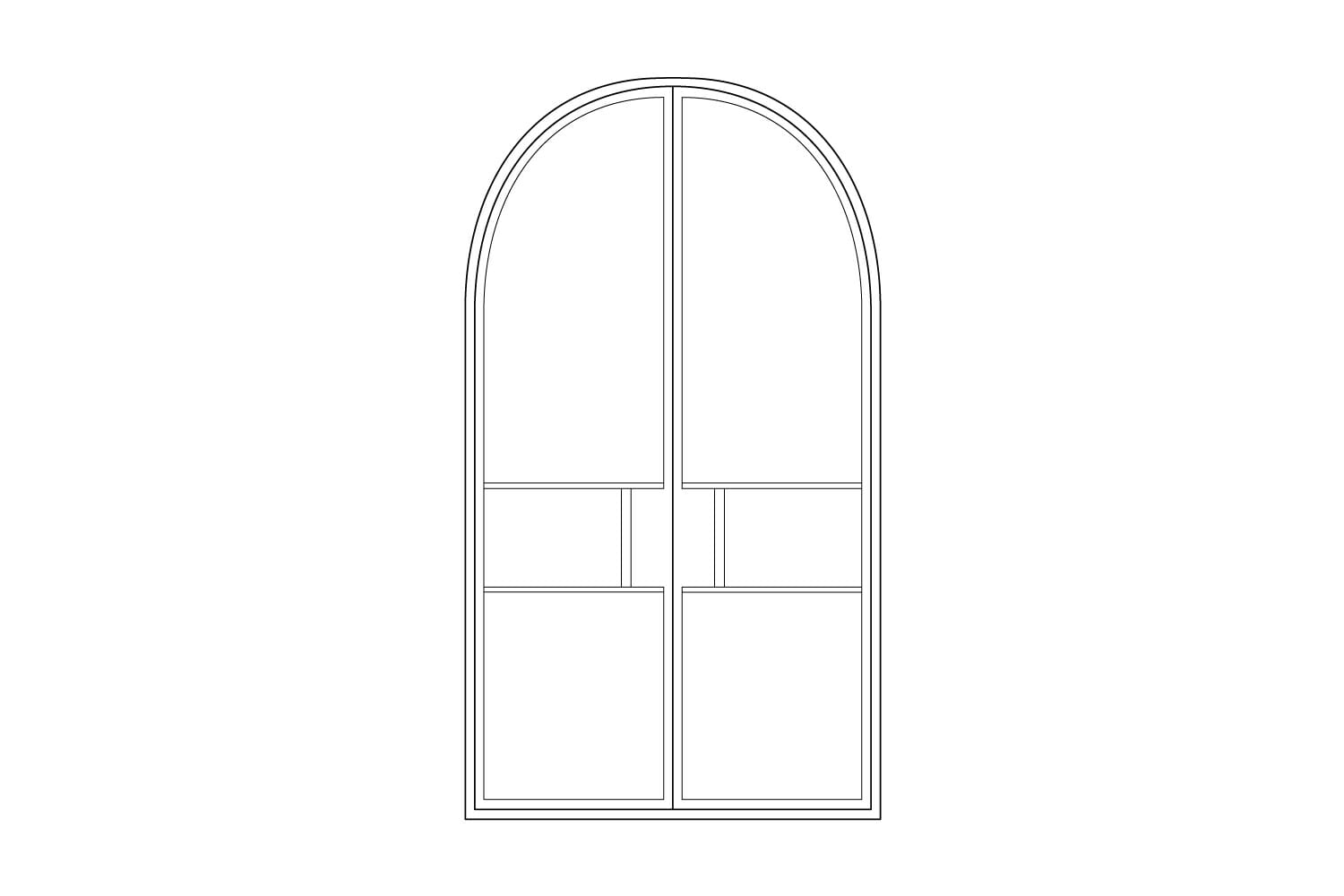

Hinge
French

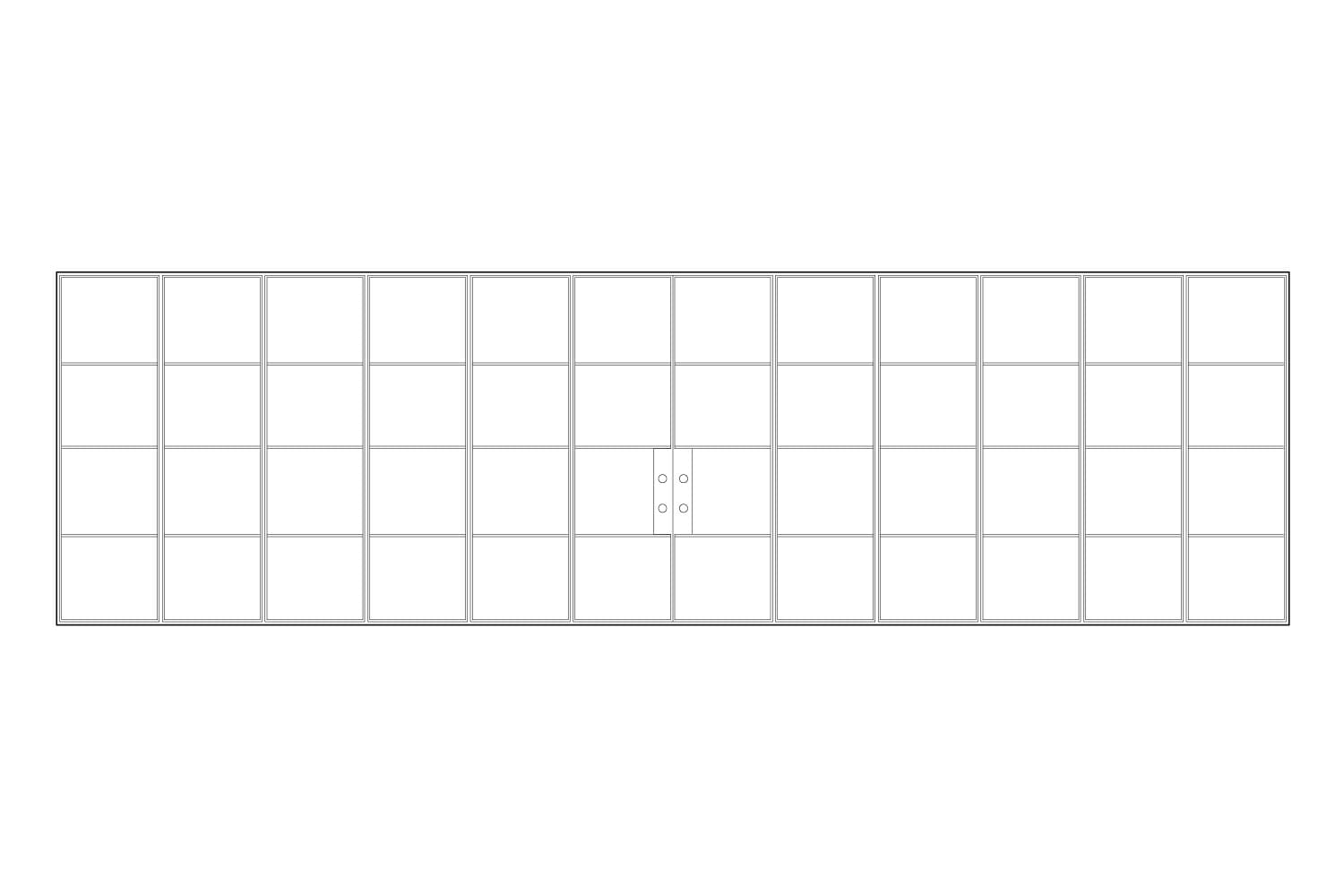

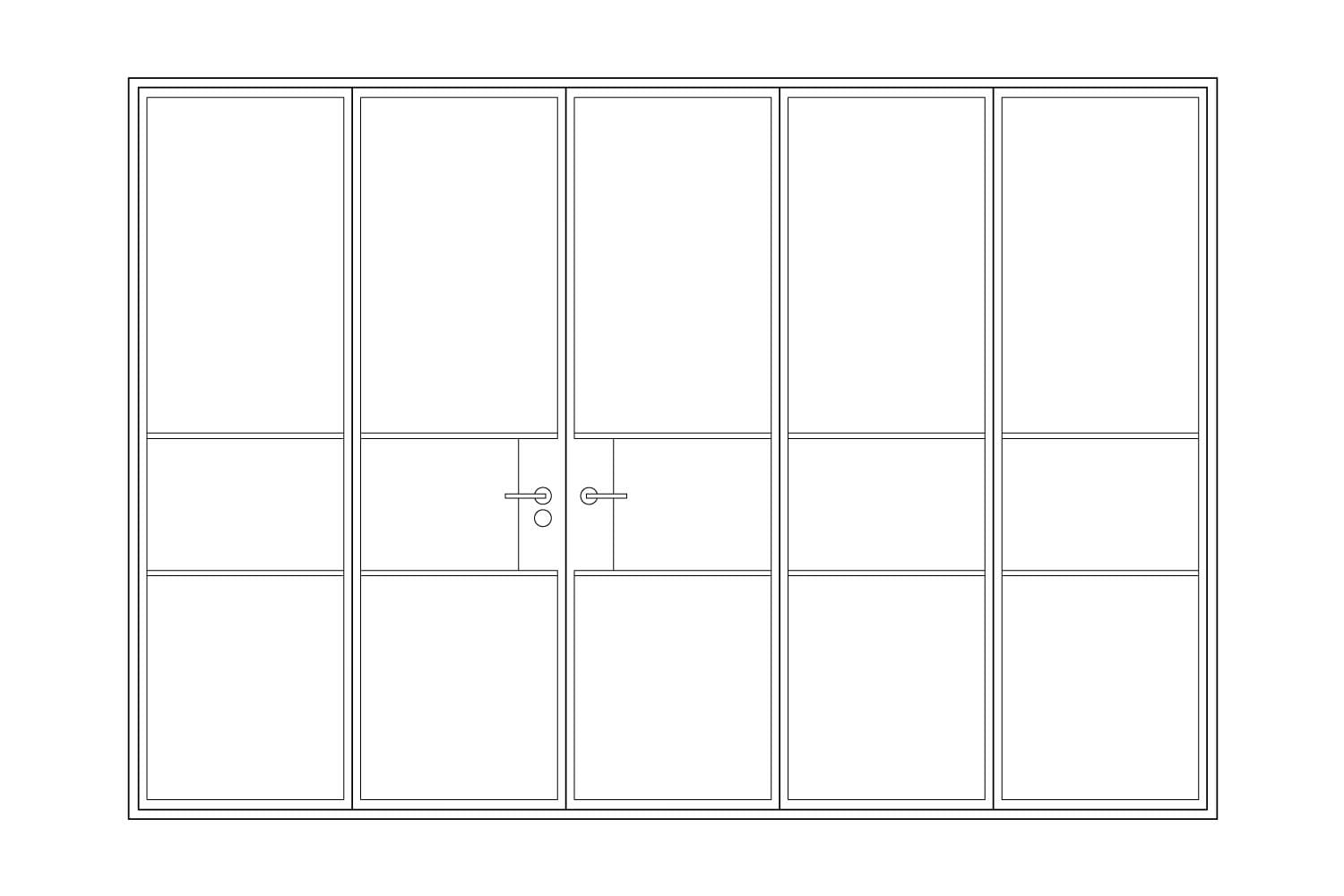

Bi-fold

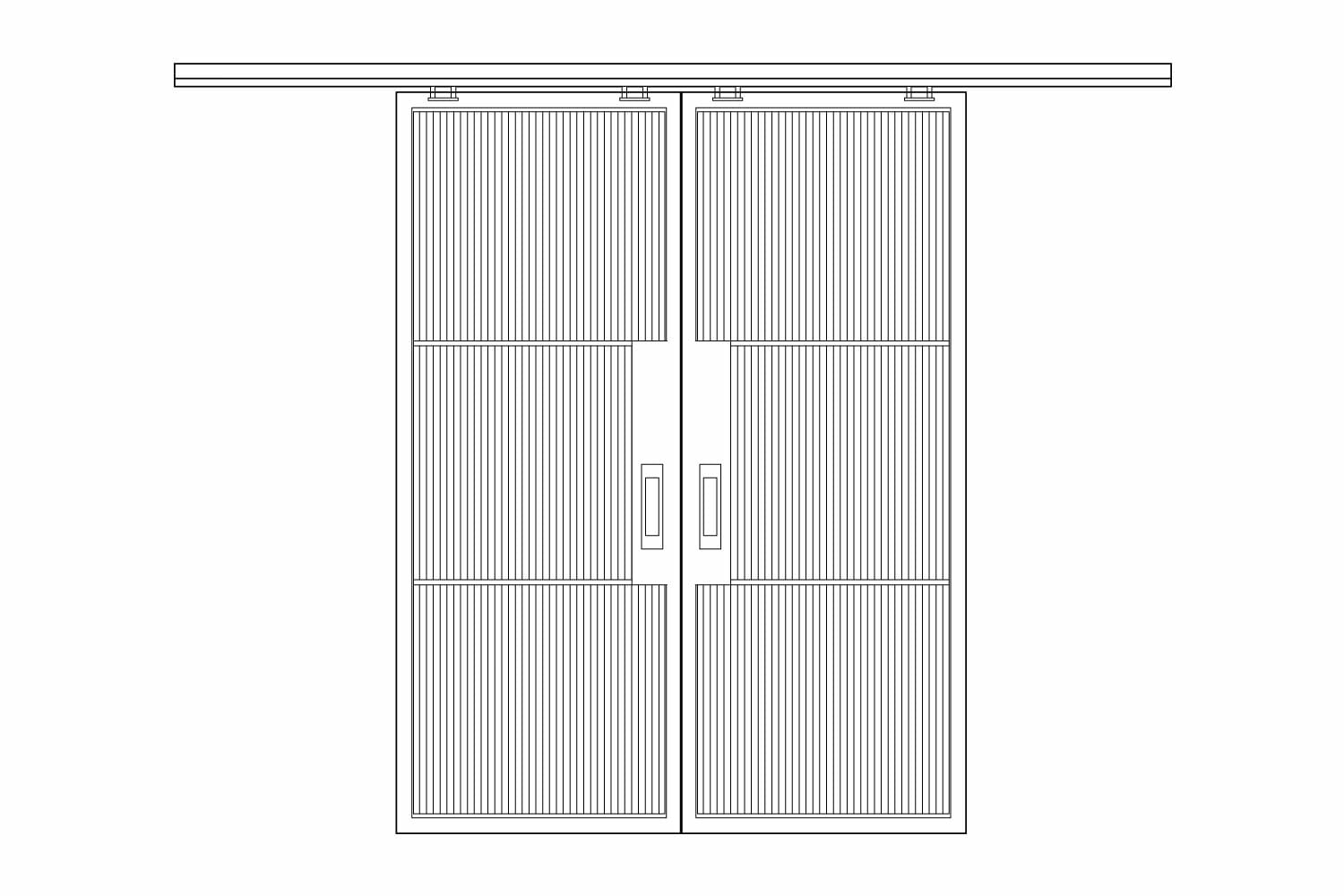

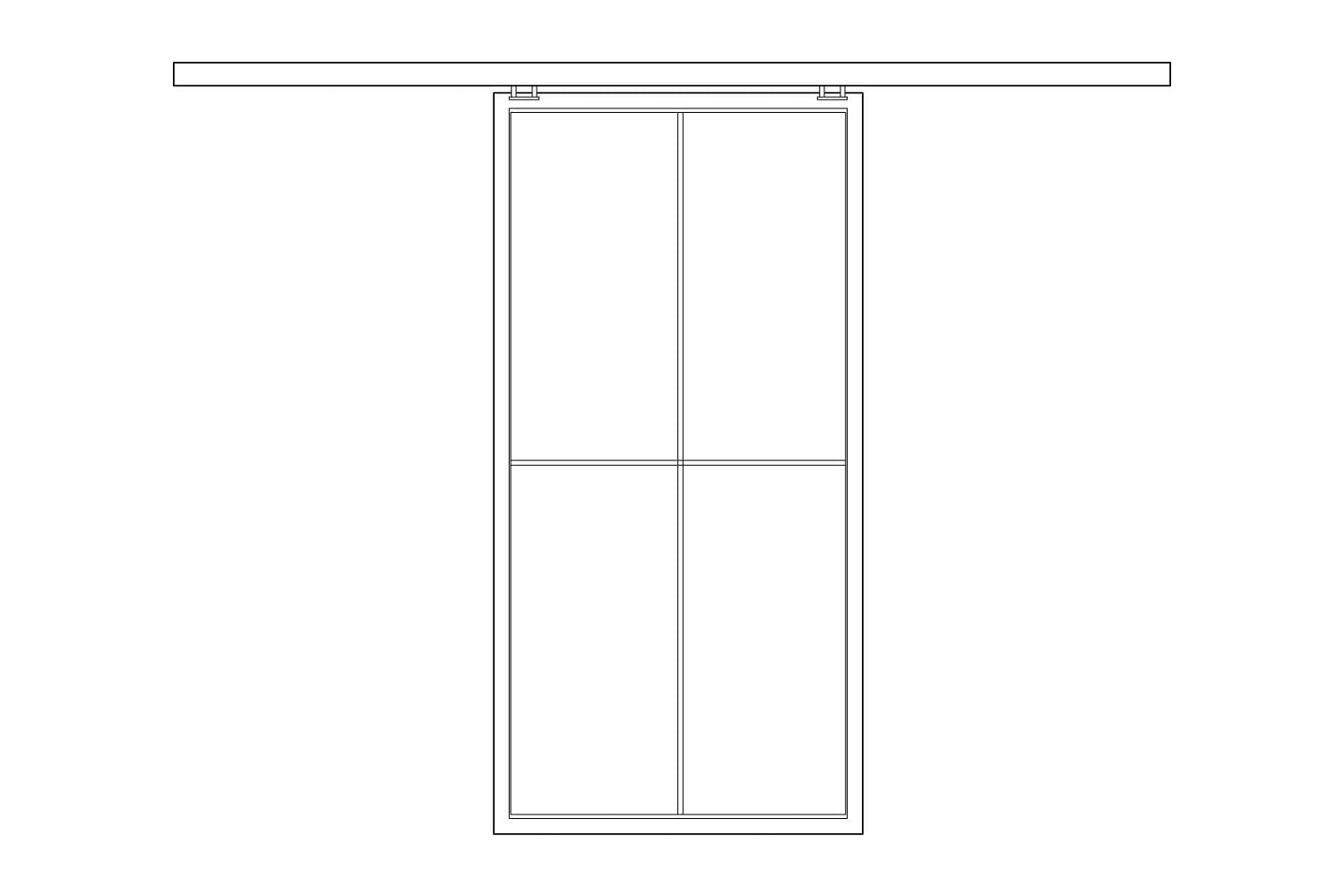

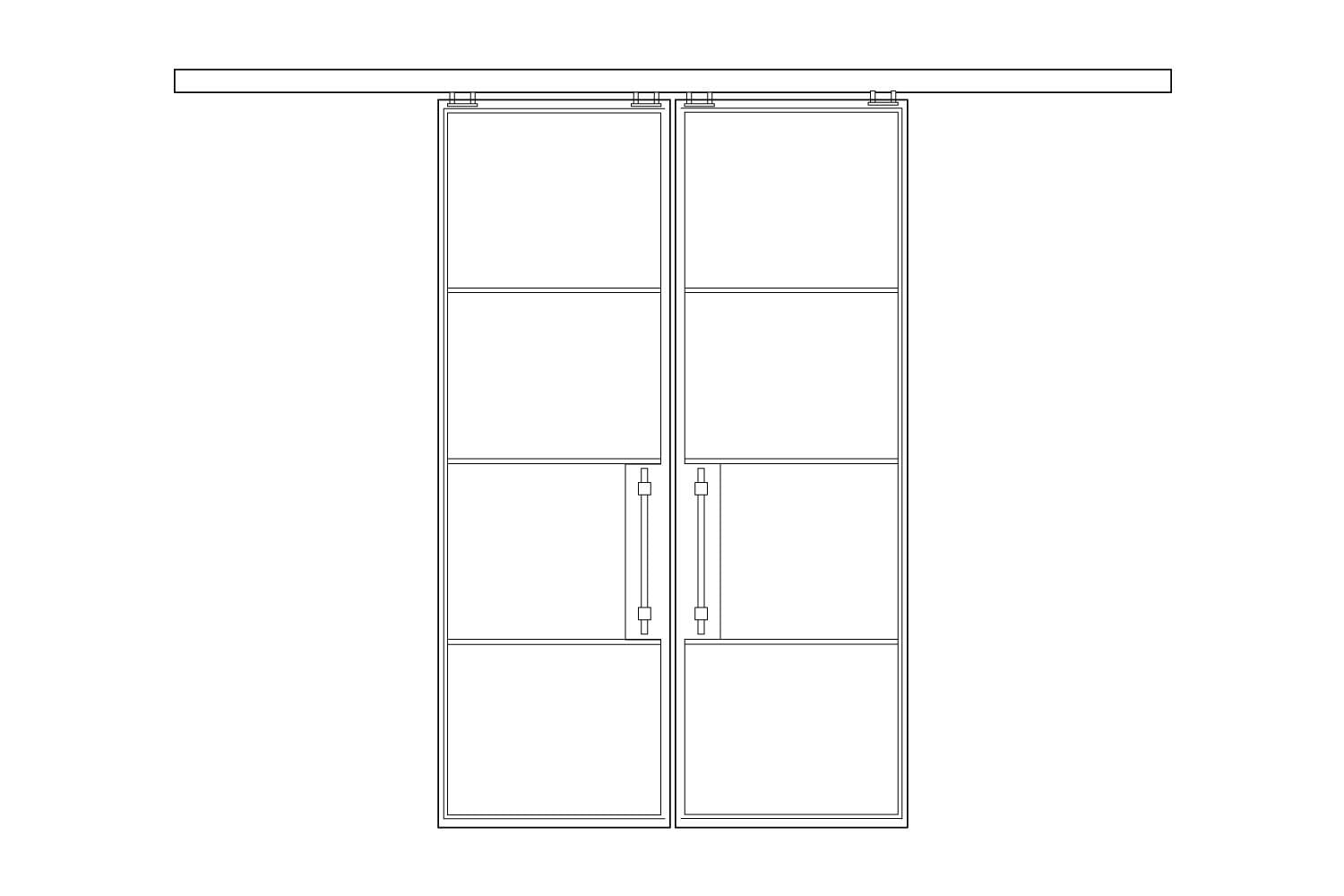

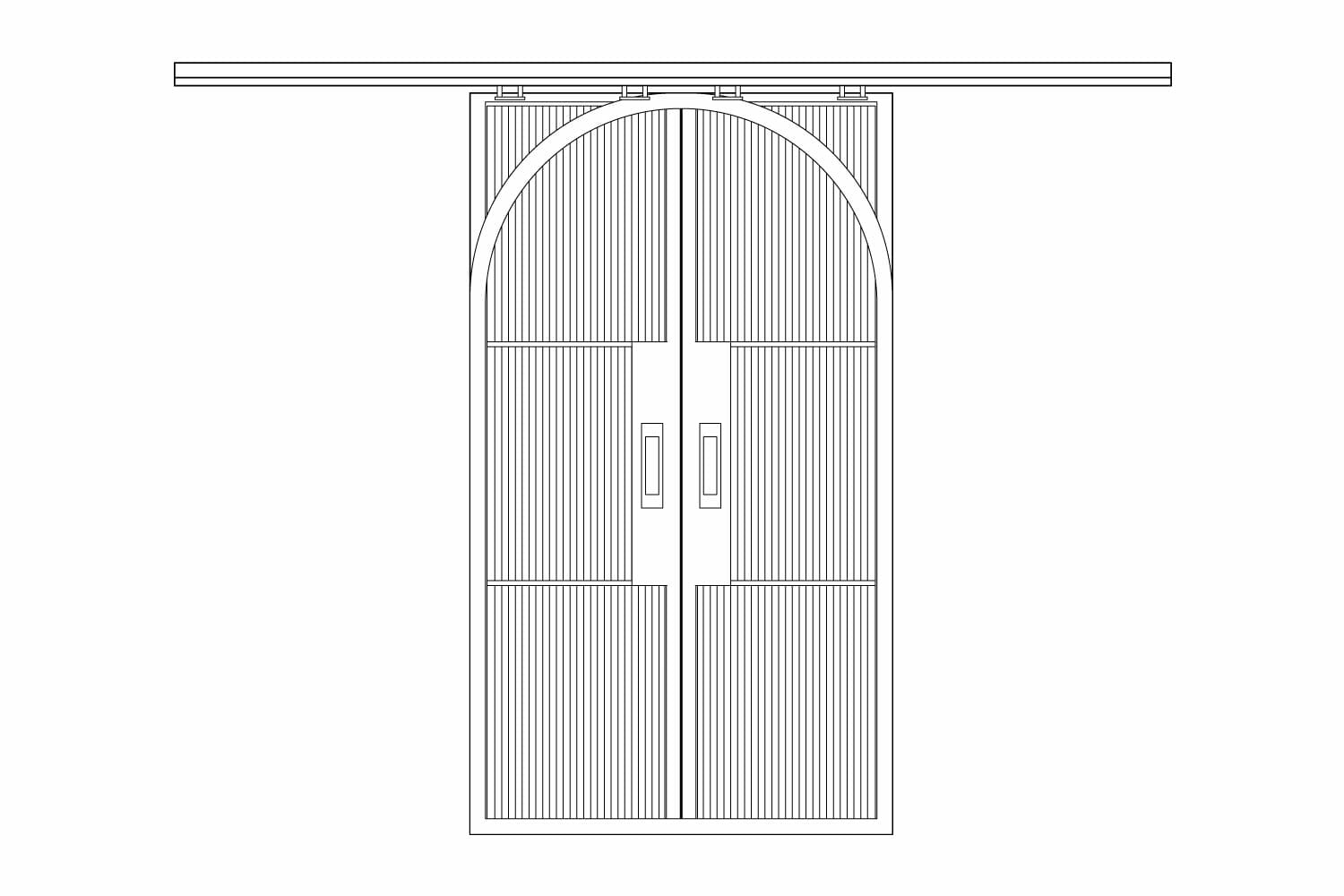

Barn

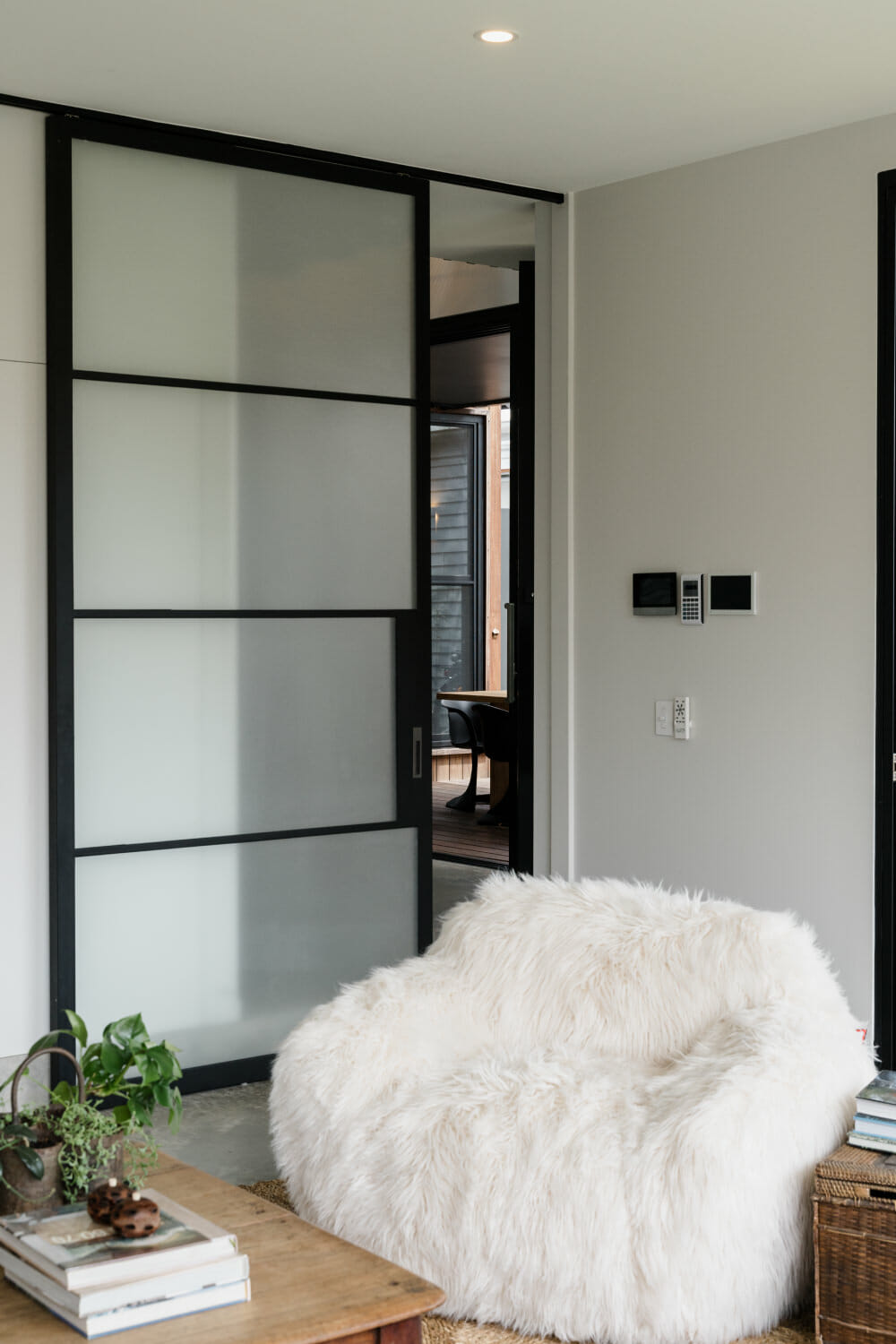

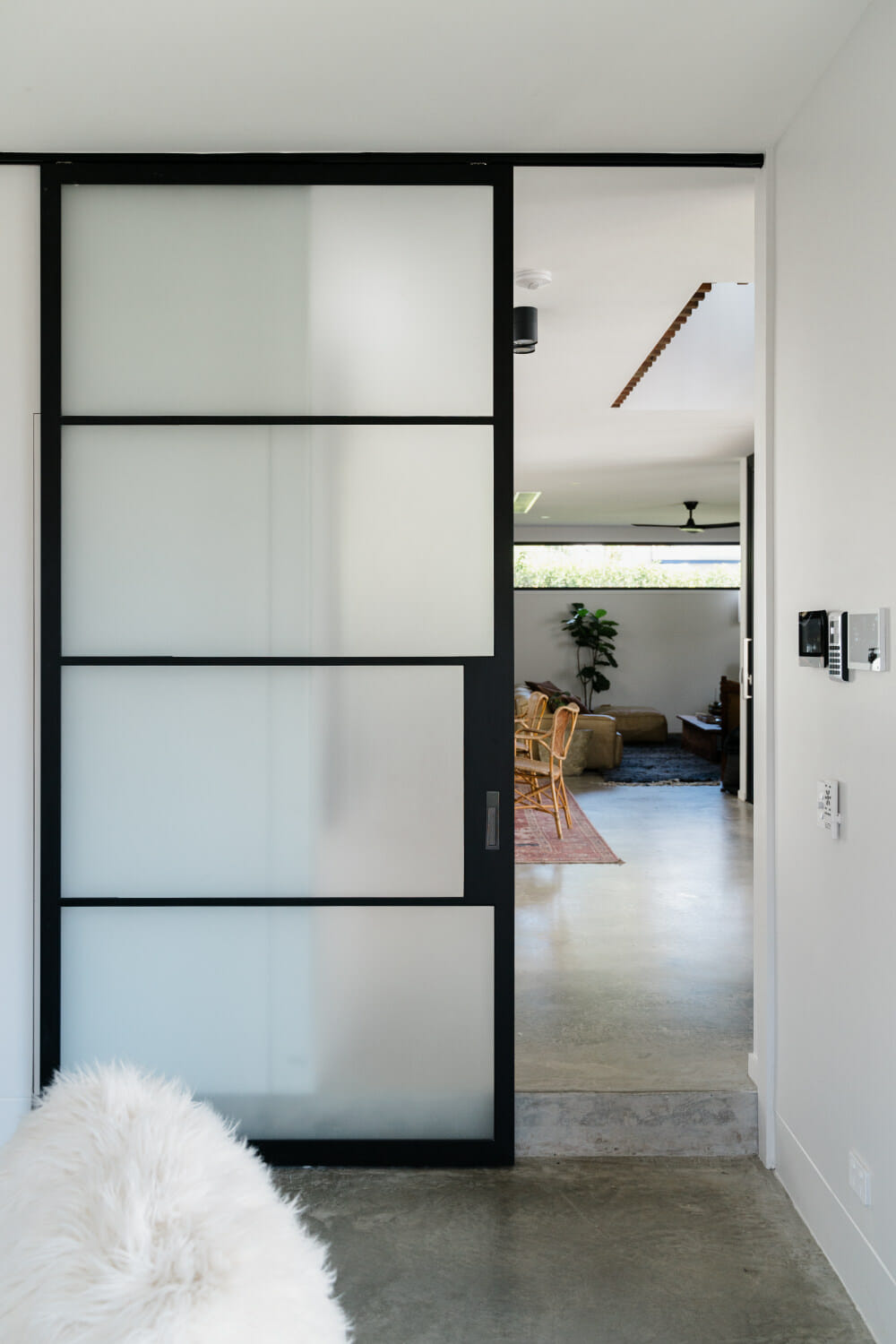

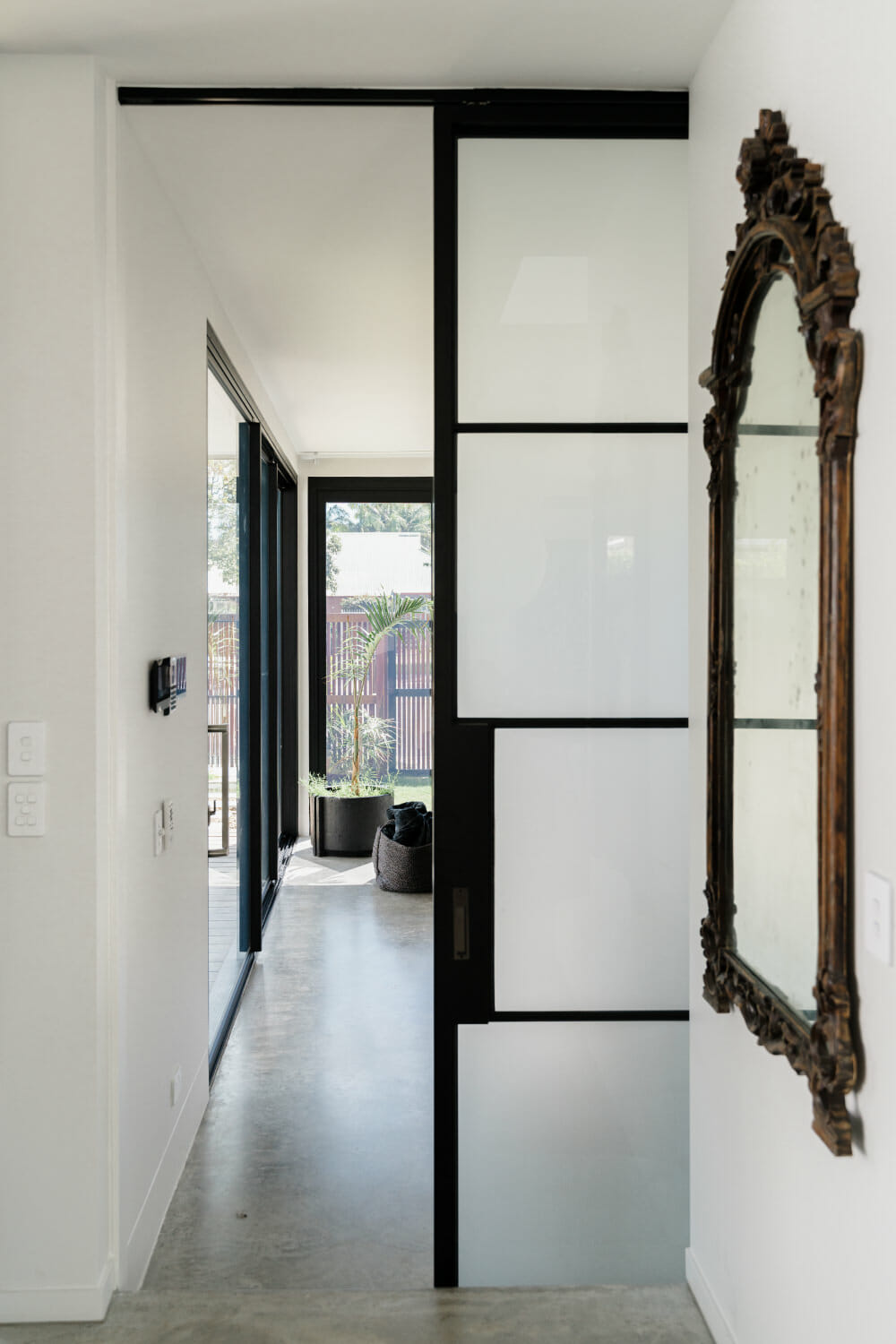

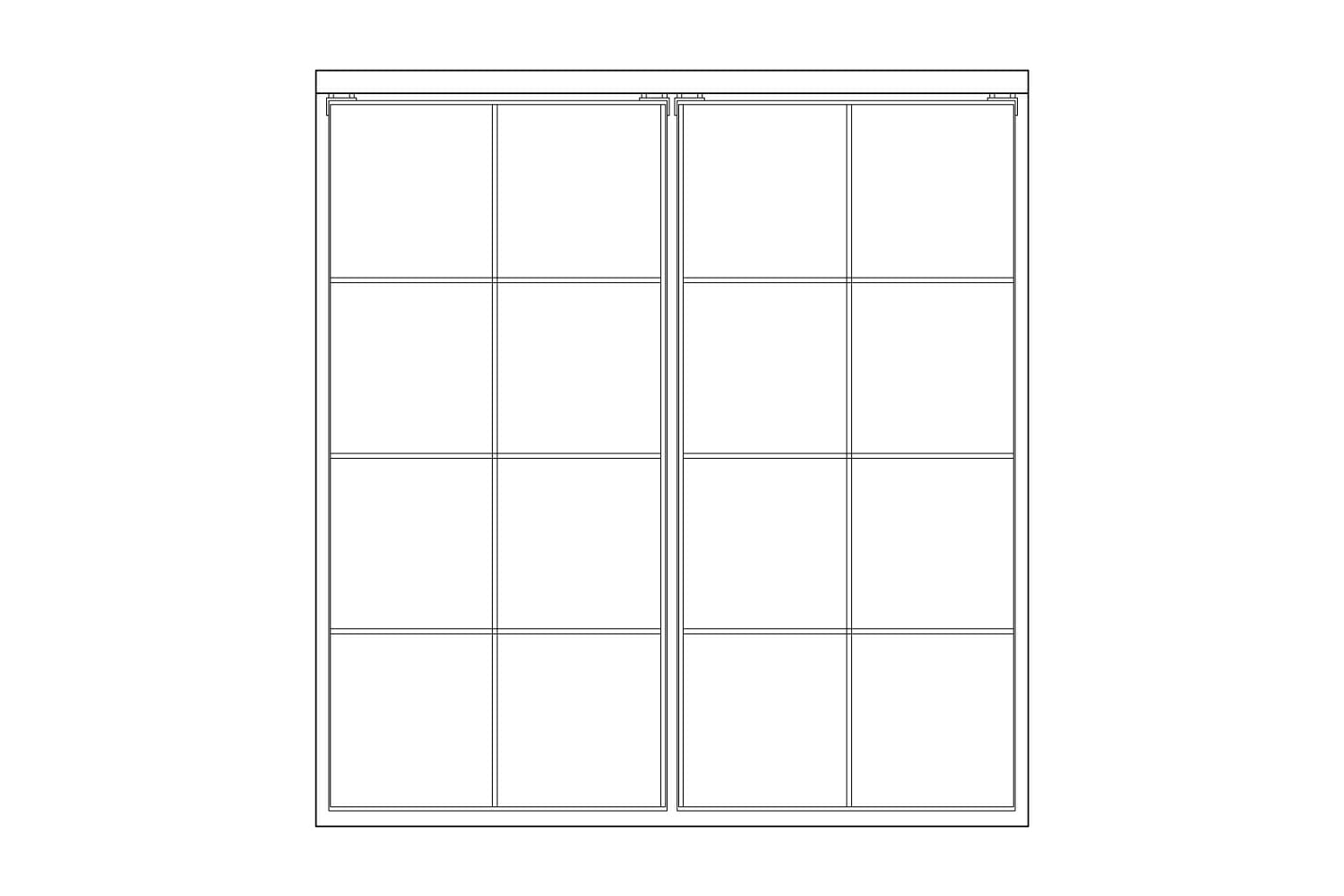

Cavity Sliding

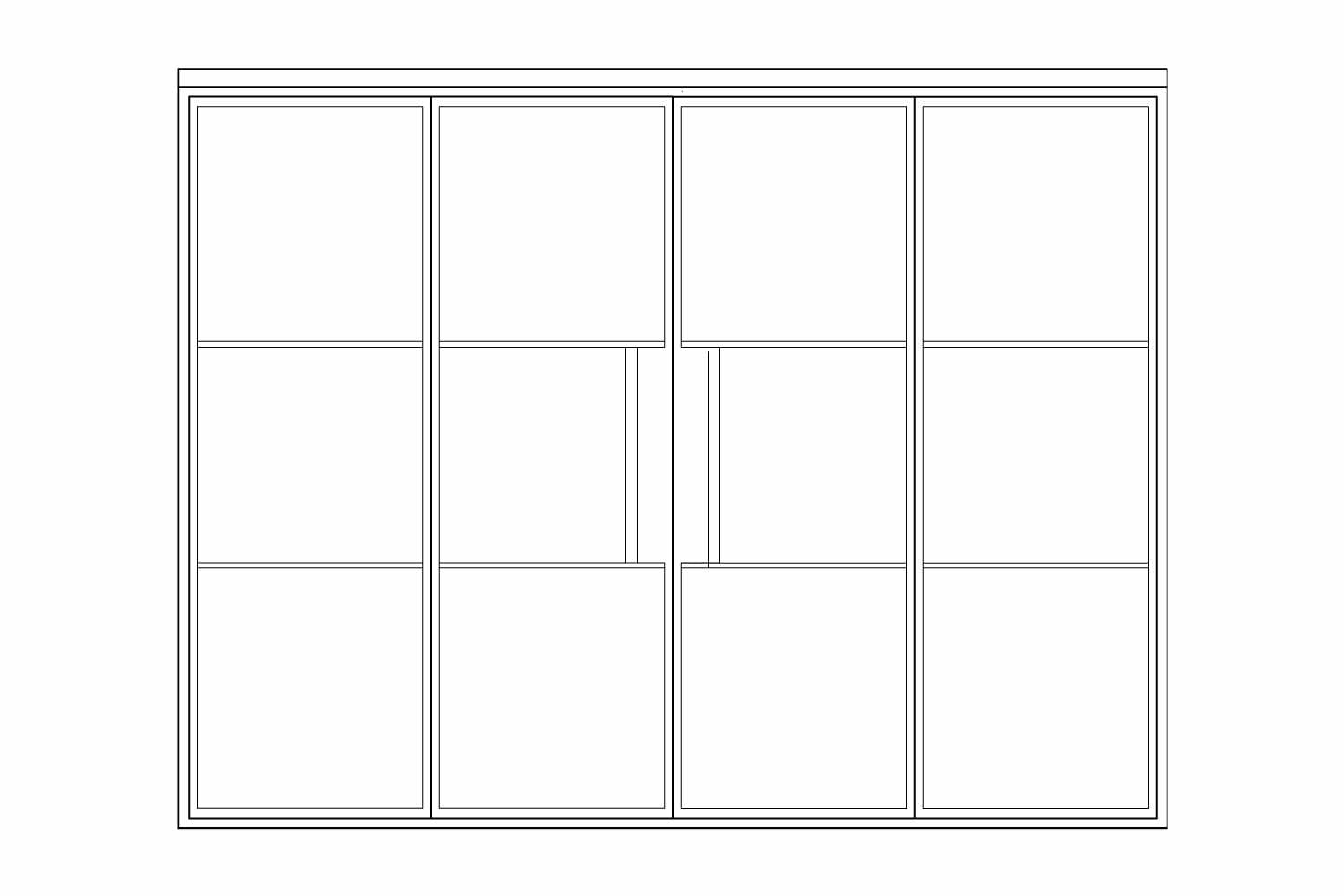

Stacker Sliding

Glazing Options

Single Glazed –  6mm, 8mm, 10mm tempered safety glass
Double Glazed – 5mm + 9a/12a (Argon filled) + 5mm tempered safety glass

Styles

Clear
Reeded (Fluted)
Grey
Rainstorm
Hammered
Aquatex
Course Linen
Pinhead

Location of Door

Interior
Exterior

Swing of Door

In-swing Left hand
In-swing Right hand
Out-swing Left hand
Out-swing Right hand

Door Design

Customisable

Material

Precision cold formed galvanised steel profiles – ”P Tube” profile design
3.2mm wall thickness tube with foam injected – Very compact profiles with minimal depth and sight-lines

Solid Hot Rolled Swiss Steel W20 & W40 Stepped leg design, material thickness up to 5mm – Very compact profiles with minimal depth and sight-lines
Appropriate for heavy duty corrosion protection

Surface Treatment

Zinc-magnesium pre-coating for corrosion protection
Gritblasting SA 2.5;
The 1st layer is a sealing primer
The 2nd layer is a high-durable top coating;
Total thickness is at least 150-180 microns according to VMRG quality requirements.
Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)

Door Jamb & Frame

P Tube Steel Profile
50mm/75mm/100mm/150mm x 25mm/30mm/40mm/50mm

W20 Swiss Steel Profile
22mm x 32mm, 35mm x 32mm, 41mm x 32mm

W40 Swiss Steel Profile
27mm x 42mm, 39mm x 42mm, 35mm x 42mm

TDL (Mullion bars)

20T/30T

Glazing Beads

CTM20/CTM30

Hinges

Heavy Duty Welded, 180 degree, Lift off with grease nipple

Mounting Type

13mm/8mm – Pre drilled mounting holes inside of jamb, with supplied cover caps. *Note screws for fixing jamb not supplied.
Mounting Tabs Outside of Jamb
Mounting Fins Outside of Jamb

Handles

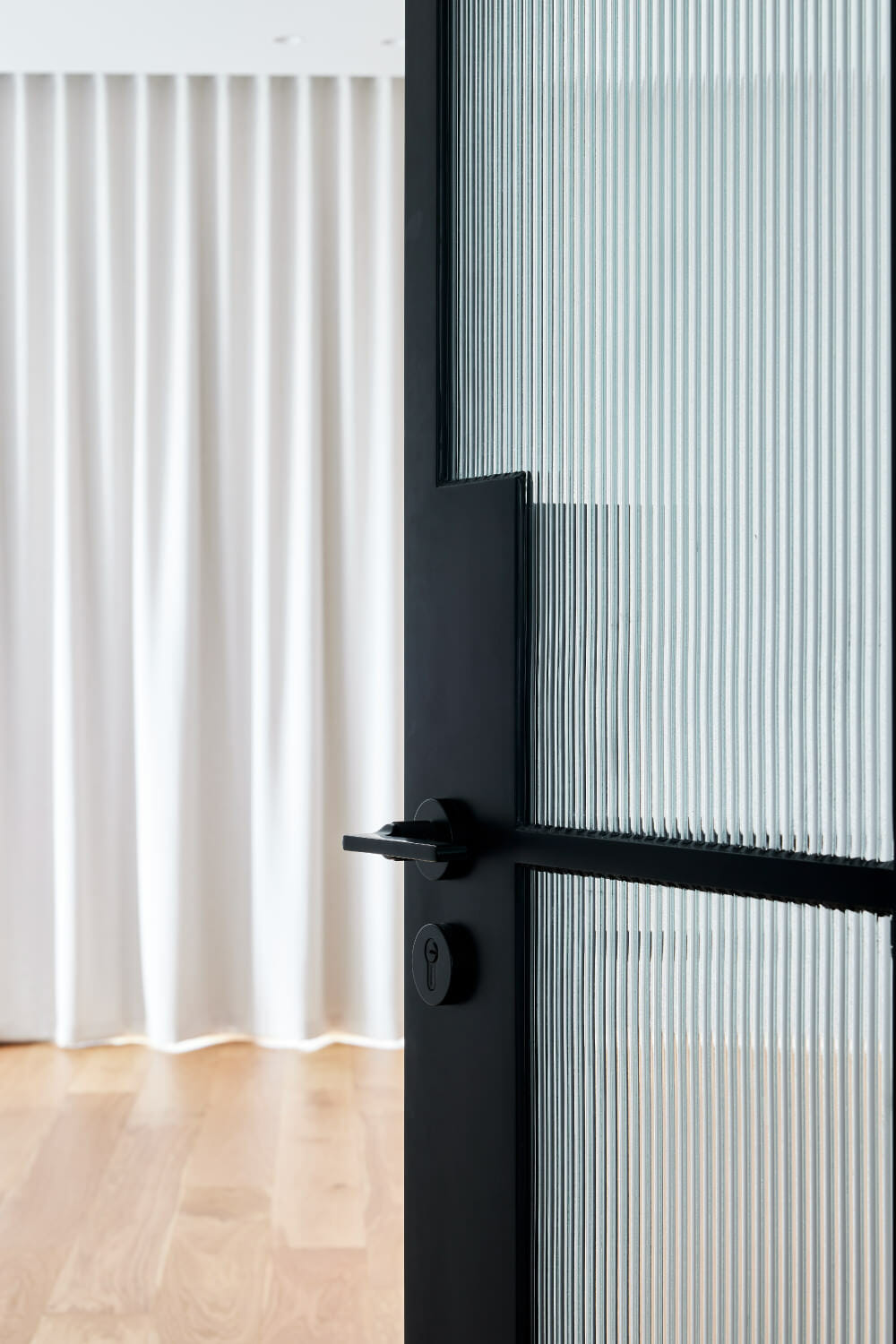

SEMAR Brass Bodied Lever with Spring Latch
Custom Steel Pulls – Various options

Lock

SEMAR Mortice Lock with key outside, turn snib inside – Matt Black
Single Deadbolt Round or Square with key outside, turn snib inside – Matt Black/Silver
Lockwood Electronic Strike & Mortice Lock – By request

Roller Catch

2 per door set

Flushbolt

2 per door set

Doorsill

30mm inside edge/25mm outside edge as standard

Rubber Drop Seal

10mm

Package

5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and sealed wooden crate

CAD Shop Drawing

Yes

Note

External Doors and Windows can be supplied glazed or
un-glazed depending on your building surveyor/certifier. Our glass meets Australian Standards.

What are your lead times for custom manufacturing & delivery to site?

Melbourne, Sydney & Canberra, Brisbane: Approx 4-5 months from shop drawing approval date to site.
Adelaide, Perth, Tasmania: Approx 5-5.5 months from shop drawing approval date to site.

Do you have a showroom?

Yes we have a new showroom at 9 Gwynne Street, Cremorne, Victoria which is currently open Monday-Saturday strictly by appointment. Please send an email to admin@zenbg.com.au to book an appointment.

We currently don’t have any other showrooms in other states, but aim to set these up in the future.

What size doors can you make?

Iron Entry Doors

Max size pivot single door frame: Please contact us with your requirements, we use pivot hardware capable of supporting 500kg

Max size hinge single door frame: 3000 x 1500 (no sidelight frames)
Max size hinge double doors frame: 3000 x 3000 (no sidelight frames)

*(We can make any width/height on-top of the above dimensions with the addition of sidelight/highlight windows iron/steel glass/panelling).

What are your standard Door Jamb Sizes?

Iron Doors: 50mm x 150mm-200mm Iron Tube, 12 Gauge Thickness

Do you have standard sizes?

We may have some stock items in our Melbourne warehouse, please contact us at info@zenbg.com.au for current stock. Otherwise all doors are made custom to suit your opening.

What materials do you use to manufacture your doors?

Iron Doors: Galvanised Wrought Iron (Q235), Sand blasted and Zinc Primed Prior to Painting, 2.5mm Iron Sheet on either side of the panel, 45mm Polyurethane Core, 50mm iron tube for panel and frame

How heavy are your doors?

Iron Doors: 72kg/sqm

Are your entry doors fire rated or BAL tested?

No we have not undergone BAL testing for our Iron Entry Doors, but they are manufactured from non-combustible 2.5mm iron sheeting on the inside and outside of the panel. Check with your building surveyor or certifier.

Can Iron Entry Doors be facing the sun and exposed to water?

We don’t recommend installing the iron entry doors in instances where the entrance will face direct sun for most of the day, extreme heat can distort the steel and cause issues with the jamb.

How long have you been in business?

Zen Doors was founded in 2019, but our manufacturing facilities have been manufacturing different types of wrought iron, steel glass hinge, pivot, sliding, bifold doors and windows for over 15 years.

Where are your doors manufactured?

Zen Doors are designed in Melbourne, Australia and manufactured in two large manufacturing facilities in China. Our doors are all custom made by hand and undergo numerous quality checks and tests, we construct and hang every door prior to shipping to test hardware, mechanisms and sizes. All iron and steel glass doors are securely packed and sealed in large wooden boxes and imported Worldwide in large shipping containers.

How can I obtain a quote for a custom design or size not shown on your site?

Please send us an email at admin@zenbg.com.au with the door type, opening size and site address for a custom quote.

Do you offer installation & glazing service?

We can offer door installation in Melbourne. All steel doors/windows with single, or double glazing, low e glazing. All doors with glass have glazing pre installed and is in accordance with Australian Glazing Standards.

How do I install my new Zen Door?

As each installation will have different requirements and quality and safety is paramount, if you’re located in Melbourne we recommend using our installation service. If interstate we recommend using a qualified door carpenter to install your door. Your door will come with all the necessary hardware to install your door into our supplied door frames. View the installation guide on our website for basic instructions.

For Iron Doors there are two methods for installation, iron mounting tabs welded on the side of the iron door jamb or pre drilled mounting holes on the inside of the jamb. Please talk to your builder or installer which method will be best for your circumstances on site.

Your builder or carpenter will ensure proper installation of the jamb and hanging of the door. As both iron and steel glass doors are quite heavy, multiple people will be needed for installation.

My project is interstate, can my builder or carpenter install and arrange the site glazing?

Yes we advise you have your builder or carpenter handle the installation. We recommend also going over the shop drawings we provide with your builder or carpenter to understand the requirements prior to delivery.

What type of finishes do you provide?

We have different finishes for the different door materials. Our iron doors and steel glass doors are fluorocarbon coated.

How do I order?

You can order steel doors or windows by getting in touch with us and obtaining a quote or try our Custom Quote Tool. Once you have made payment we create a CAD shop drawing of your door according to the plans, dimensions and specs you provide us. This shop drawing will need to be reviewed and signed off by you or your builder/carpenter/installer prior to us constructing the door. You can expect to receive the shop drawing within 1-3 days of making payment.

At Zen Doors quality control is paramount, so each door must pass our rigorous quality assurance tests and checks prior to packing and shipment.

What is the warranty on a Zen Door?

All Zen Doors come with our 2 year manufacturers warranty. More information can be found on our Warranty page and Refund and Return Policy page.

If you have any other question please feel free to get in touch about our hinge or pivot doors here.

Shipping to Australia

We design our iron hinge, pivot doors & steel glass doors and windows in Australia and manufacture in two large facilities in China. We ship our doors in sealed wooden boxes via sea freight in large containers.

Road Transport Within Australia

Once your order is available at one of our capital city depots our freight partner will call to arrange a delivery date to deliver your entry door to you via road transport.  Please contact us for a freight estimate based on your location.

Once delivery is arranged with the driver you must be at the address specified between the times allocated or arrange authority to leave the boxes in a safe area. Failure to do so will risk in further carrier charges if the truck has to return to the depot. You will be charged for the second trip.

Cost is calculated by the distance you’re located from one of our capital city depots. The further away you are from the depot the higher the cost will be as our items generally come in large plywood crates and are quite heavy. The delivery driver will only lower the crate to a flat safe location at the front of the site. It is you or your installer/builders responsibility to unpack or move the crate.

Please touch base with us for a price estimate on your delivery location.
